Smart Insole User Manual

Your guide to advanced biomechanical analysis

Quick Navigation

Introduction Getting Started Connecting Your Insole Calibration Process LED Indicators Using Your Insole Maintenance and Care Troubleshooting Technical Specifications Support and Contact Disclaimer

Introduction

Welcome to your Striv Smart Insole! This advanced wearable device provides real-time biomechanical analysis of your running and walking gait. The insole contains pressure sensors, motion sensors, and environmental sensors to deliver comprehensive data about your movement patterns.

Getting Started

What's in the Box

  • Striv Smart Insoles (Left and Right)
  • Removable battery pod
  • Battery charging dock

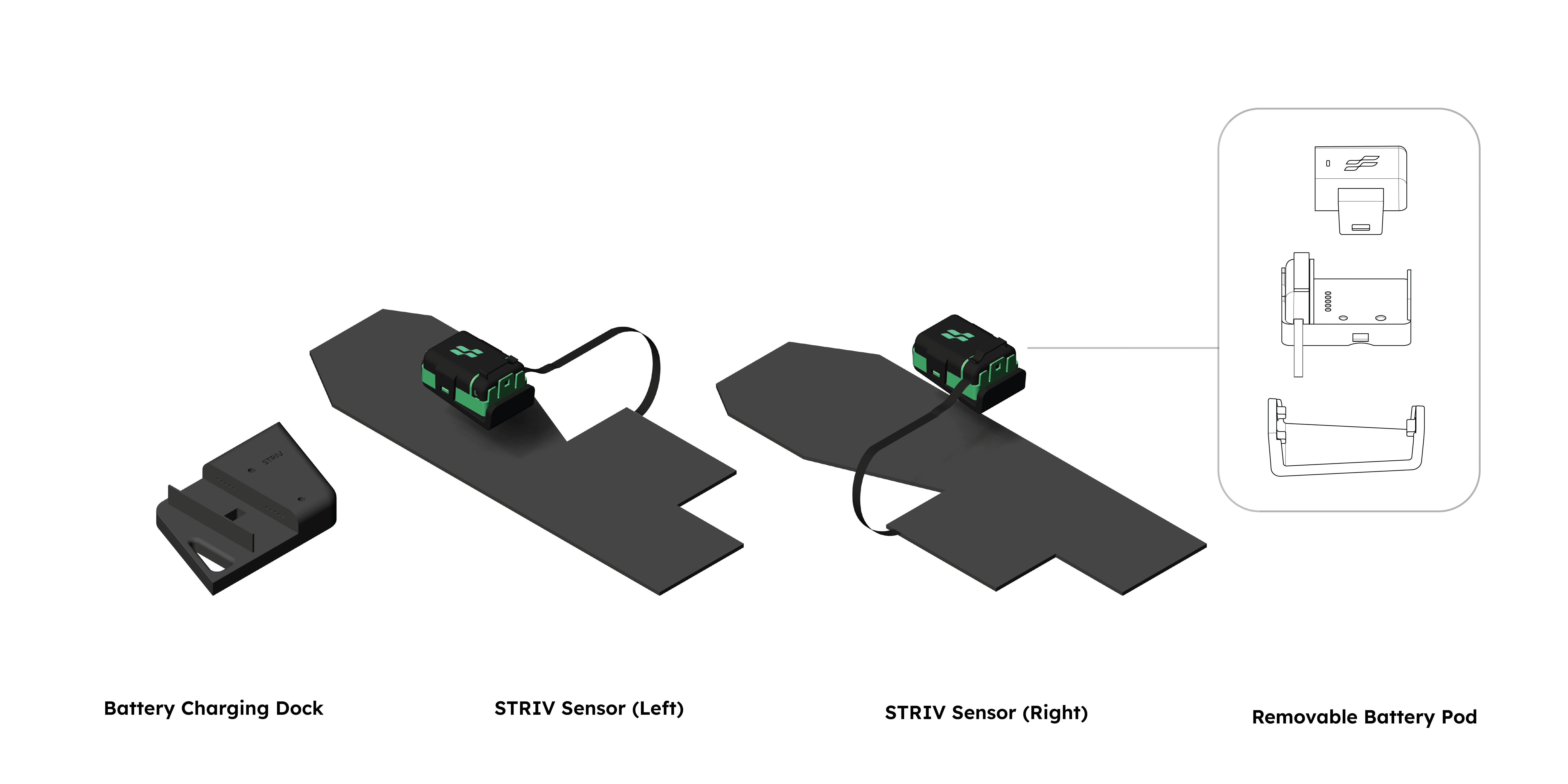

Contents of the Striv Smart Insole package

Charging Your Insole

Warning: Use only power sources rated at 5V/1A or less to prevent damage to the charging system.
  1. Remove the battery pod from your insole.
  2. Place the battery pod in the provided charging dock.
  3. Connect the charging dock to a power source (max 5V/1A).
  4. A full charge takes approximately 2-3 hours.
  5. The light will turn green charging is complete.
  6. Reinsert the charged battery pod into your insole.

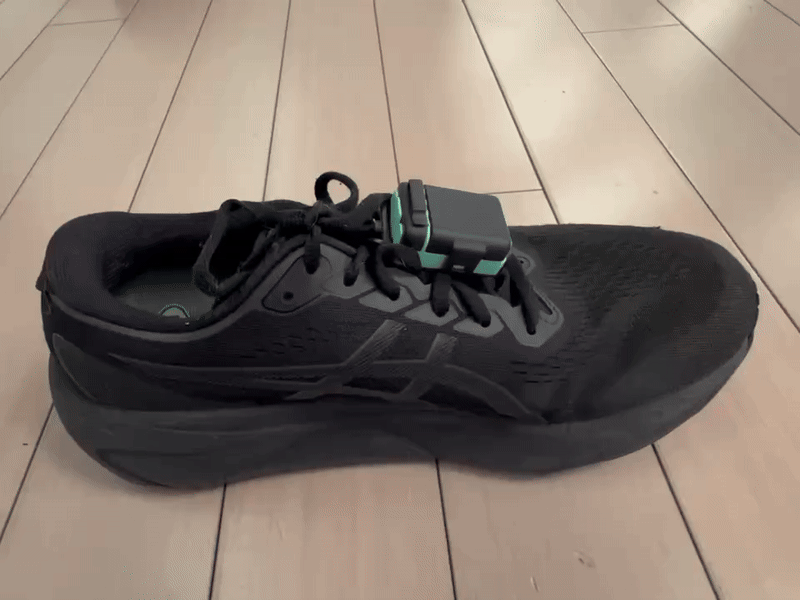

Demonstration of removing battery pod from insole Demonstration of charging the battery pod

Connecting Your Insole

First-Time Setup

  1. Put on your smart insole (please refer to the "Using Your Insole" section.)
  2. Enable Bluetooth on your smartphone.
  3. Download the Striv app from the App Store or Google Play Store. Join our TestFlight
  4. Open the Striv app and create an account or log in to your existing account.
  5. Go to "Start Runing", then click "Start to Run" to connect your insole.
  6. The top right corner of the screen will show the connection status of your left and right insoles.
Demonstration of connecting the Striv Smart Insole to the app

Reconnecting

  1. Turn on your insole.
  2. Open the Striv app.
  3. Your insole should automatically reconnect.

Calibration Process

Important: Calibration starts automatically when Bluetooth is connected!

For optimal performance, your Striv insole needs to be calibrated to your specific foot pressure patterns:

  1. After connecting to Bluetooth, the insole will automatically enter calibration mode.
  2. The LED will display a gradual transition from red to green during calibration.
  3. Stand normally with your weight evenly distributed on both feet.
  4. Maintain this position for approximately 5 seconds until calibration is complete.
  5. The LED will turn off once calibration is successful.

Calibration Tips

  • Ensure you're standing on a flat, level surface.
  • Distribute your weight evenly between both feet.
  • Remain still during the entire calibration process.
  • Recalibration is recommended when:
    • Switching between different types of footwear
    • After not using the insole for an extended period
    • If you notice inaccurate readings

Understanding LED Indicators

Your Striv insole uses LED colors and patterns to communicate its status:

LED Pattern Color Meaning
Solid Off None Normal operation after calibration
Gradual Transition Red → Green Calibration in progress
Blinking Yellow Low battery (≤20%)
Blinking Blue Bluetooth disconnected
Blinking Purple Low data sampling rate

Note: The LED indicators follow a priority order. If multiple conditions exist simultaneously, the highest priority condition will be displayed (Low battery > Bluetooth disconnected > Calibration > Low sampling rate).

Visual LED Guide

Blinking Yellow: Low Battery
Blinking Blue: Bluetooth Disconnected
Red to Green Transition: Calibration in Progress
Blinking Purple: Low Data Sampling Rate

Using Your Insole

Placement

  1. Remove the original insole from your shoe.
  2. Insert the Striv Smart Insole (ensure the insole lies flat and doesn't curl at the edges.)
  3. Put original insole back on top of the Striv Smart Insole (optional.)
  4. Secure the clip to the shoelaces, then attach the Striv smart insole and battery pod to the clip.

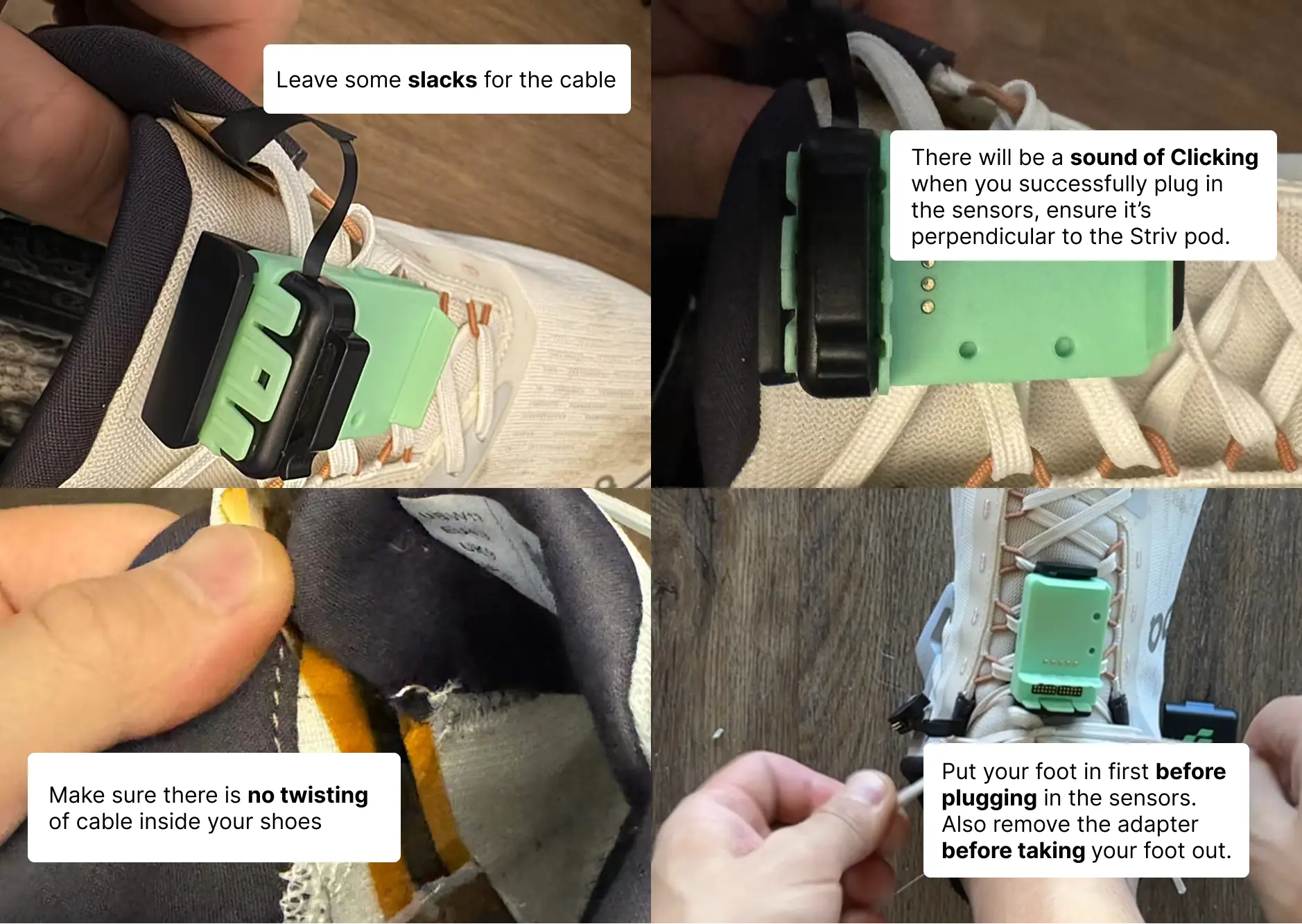

Demonstration of how to properly insert and use the Striv Smart Insole

Activity Tracking

  1. After successful calibration, the insole will automatically track your movements.
  2. No additional user input is required during activity.
  3. The app will display real-time data as you move.

Data Collection

Your insole collects the following data:

  • Pressure distribution across your foot
  • Ground contact time
  • Flight time during running
  • Loading rate
  • Pronation/supination angle
  • Foot strike pattern
  • Elevation changes
  • Temperature

Maintenance and Care

Cleaning

  1. Remove the insole from your shoe.
  2. Wipe gently with a damp cloth.
  3. Allow to air dry completely before reinserting.
  4. Do NOT machine wash or submerge in water.

Battery Management

  • A full charge typically lasts 15-20 hours of active use.
  • When the LED blinks yellow, remove and charge the battery pod.
  • To preserve battery life, remove the battery pod when not in use for extended periods.
  • Use only the provided charging dock and ensure power source is 5V/1A or less.

Storage

  • Store in a cool, dry place.
  • Avoid extreme temperatures.
  • Do not bend or fold the insole.

Troubleshooting

Insole Won't Connect

  1. Ensure Bluetooth is enabled on your smartphone.
  2. Verify the insole is charged and powered on.
  3. Restart the Striv app.
  4. If problems persist, try restarting your smartphone.

Calibration Issues

  1. Ensure you're standing still during calibration.
  2. Check that the insole is properly positioned in your shoe.
  3. Try recalibrating in a different location.
  4. If calibration repeatedly fails, contact customer support.

Inaccurate Data

  1. Recalibrate the insole.
  2. Ensure the insole is properly positioned in your shoe.
  3. Check for any physical damage to the insole.

LED Continuously Blinks Blue

  1. Check that Bluetooth is enabled on your smartphone.
  2. Verify the Striv app is open and running.
  3. Try moving your smartphone closer to the insole.

Technical Specifications

  • Battery: Rechargeable lithium-ion
  • Battery Life: 15-20 hours of active use
  • Connectivity: Bluetooth Low Energy (BLE)
  • Sensors: Pressure array, IMU (motion), barometric (elevation), temperature
  • Water Resistance: Splash resistant (not waterproof)
  • Temperature Range: -40°C to +85°C (-40°F to +185°F)

Support and Contact

For additional support:

Account Management

To delete your account:

  1. Open the Striv app
  2. Navigate to Personal Settings
  3. Select "Delete Your Account"
Note: Account deletion is permanent and cannot be undone. All associated data will be permanently removed from our systems.

Warranty Information

Your Striv Smart Insole comes with a limited one-year warranty covering manufacturing defects. Please register your product on our website to activate your warranty.

Disclaimer

Medical Disclaimer: The Striv Smart Insole is not a medical device and is not intended to diagnose, treat, cure, or prevent any disease or health condition. The information provided by the device and companion app is for informational and recreational purposes only.

Accuracy of Information: While we strive to provide accurate biomechanical data, the measurements and analyses provided by the Striv Smart Insole should not be considered as precise as clinical-grade equipment. Environmental factors, improper calibration, or incorrect usage may affect the accuracy of the data.

Consultation with Healthcare Professionals: Always consult with qualified healthcare professionals regarding any medical questions or concerns. Do not make changes to your exercise routine, footwear, or treatment plans based solely on data from the Striv Smart Insole without consulting appropriate medical professionals.

Assumption of Risk: By using the Striv Smart Insole, you acknowledge and assume all risks associated with physical activity and the use of the device. Striv Technologies is not responsible for any injuries or damages that may occur during use.

Privacy and Data: Please refer to our Privacy Policy for information on how we collect, use, and protect your data. By using the Striv Smart Insole and companion app, you consent to the data practices described in our Privacy Policy.

Product Updates: Specifications, features, and capabilities of the Striv Smart Insole may change with firmware or app updates. This manual represents the product at the time of publication.
